In today's digital age, parents and educators seek reliable, screen-free solutions that foster creativity, focus, and early literacy without relying on apps, Wi-Fi, or complex interfaces. The XDT RFID story machine delivers a next-level audio storytelling experience, engineered with industry-leading passive RFID technology for instant, frustration-free interaction. Built for toddlers and preschoolers (ages 1–6), this innovative device transforms physical figurines, cards, or plush toys into gateways for immersive stories, songs, and educational content - all offline and child-controlled.
Whether you're sourcing the best RFID story machine for retail, preschool programs, or wholesale early education toys, the XDT model excels with its unmatched stability, cost-efficiency, and technical robustness. Below, we dive deep into the engineering that makes it superior, incorporating precise technical parameters and RFID knowledge points drawn from proven industry standards.
How the XDT RFID Story Machine Works
The XDT RFID story machine leverages passive low-frequency (LF) RFID technology at 125 kHz, a choice optimized for reliability in children's toys. Unlike integrated NFC designs, the XDT system uses a patented separated magnetic attraction and induction architecture:
Each figurine or card contains two independent components: (1) a pure, battery-free magnet solely for physical fixation (no electronic function, similar to a refrigerator magnet), and (2) a high-quality 125 kHz passive RFID tag that stores only a unique ID for audio triggering.
The base unit features a high-sensitivity RFID reader paired with a matching magnet. When the toy is placed within 0–5 cm, the magnet ensures stable contact while the reader activates the tag via electromagnetic induction.
Recognition occurs in ≤0.5 seconds with near-zero error rate, instantly matching the ID to pre-loaded audio files and starting playback.
Lift the toy - and audio pauses immediately. No buttons, no voice commands, no alignment issues.
Key RFID Knowledge Points:
Passive RFID (125 kHz LF): Tags require no internal battery, drawing power solely from the reader's electromagnetic field. This eliminates choking hazards, reduces costs for mass production, and ensures ultra-long lifespan (tags function indefinitely).
Separated Design Advantage: By isolating the magnet from the RFID tag, the system prevents electromagnetic interference, signal drift, or contact failures common in combined NFC/magnetic units. This delivers superior stability for bulk doll manufacturing and repeated toddler use.
Protocol Compliance: Fully supports international standards including ISO/IEC 15693 and ISO 14443 variants, ensuring broad tag compatibility and interoperability with medical-grade and educational RFID systems worldwide.
Anti-Interference Performance: Low-frequency operation offers excellent penetration through plastic/ABS materials and resistance to environmental noise, making it ideal for home or classroom settings.
The entire process is 100% offline, with no cloud dependency unless optional Bluetooth content syncing is used.
Expanded Technical Specifications & Performance Parameters
The XDT RFID story machine is engineered for durability and performance:
Recognition Technology: 125 kHz LF passive RFID reader; distance 0–5 cm; response time ≤0.5 seconds (high-frequency variant options also available for custom orders).
Battery System: Rechargeable lithium-ion (1200 mAh or 1800 mAh options); 6+ hours continuous playback; full charge in ~2 hours via USB-C; low-power standby mode extends shelf life.
Memory & Storage: TF/microSD card support (512 MB – 8 GB standard; expandable in select models); stores hundreds of MP3/WAV audio files with high-fidelity playback.

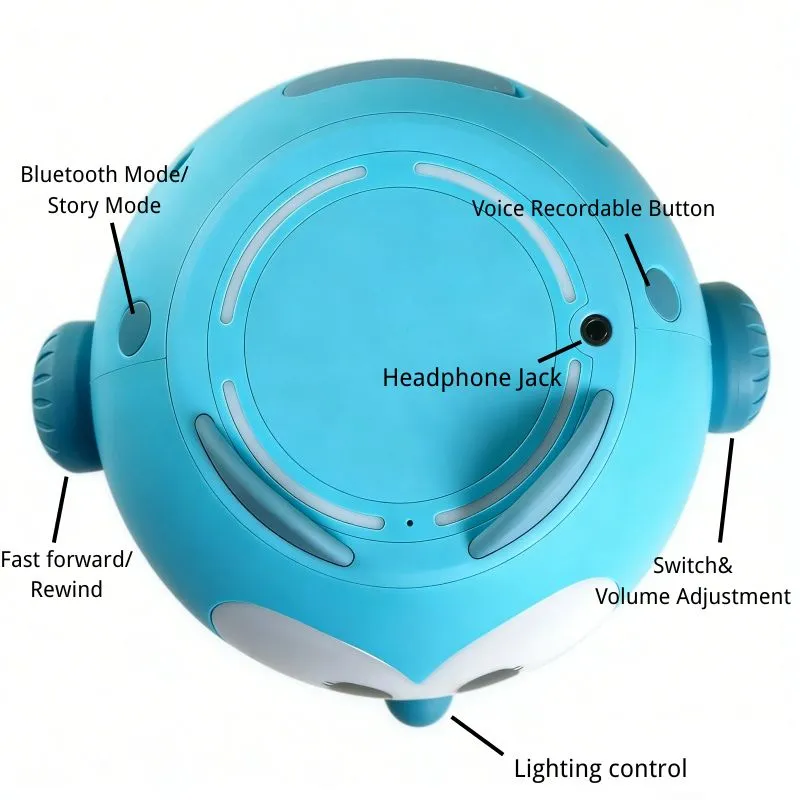

Audio Output: Premium 4Ω 3W speaker (max 85 dB); supports MP3, WAV formats; built-in volume control, fast-forward/rewind, and one-touch repeat.
Connectivity: Bluetooth 5.0 for auxiliary music streaming; optional 2.4G Wi-Fi module for OTA updates or cloud content (RFID core remains fully offline).

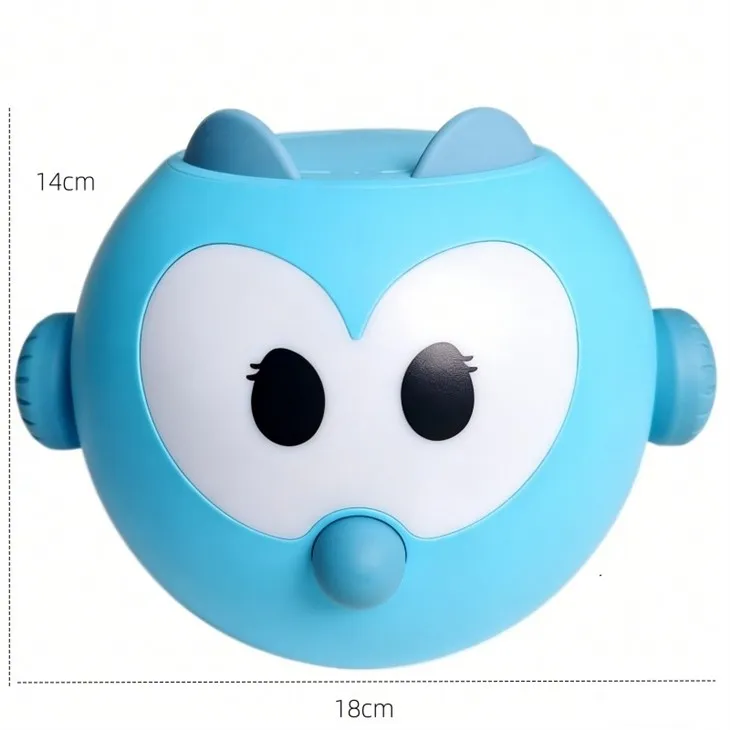

Physical Design: Compact ABS plastic housing (non-toxic, food-grade materials); available sizes 80×95 mm or 140×180 mm; weights 400 g / 900 g; drop-resistant construction.

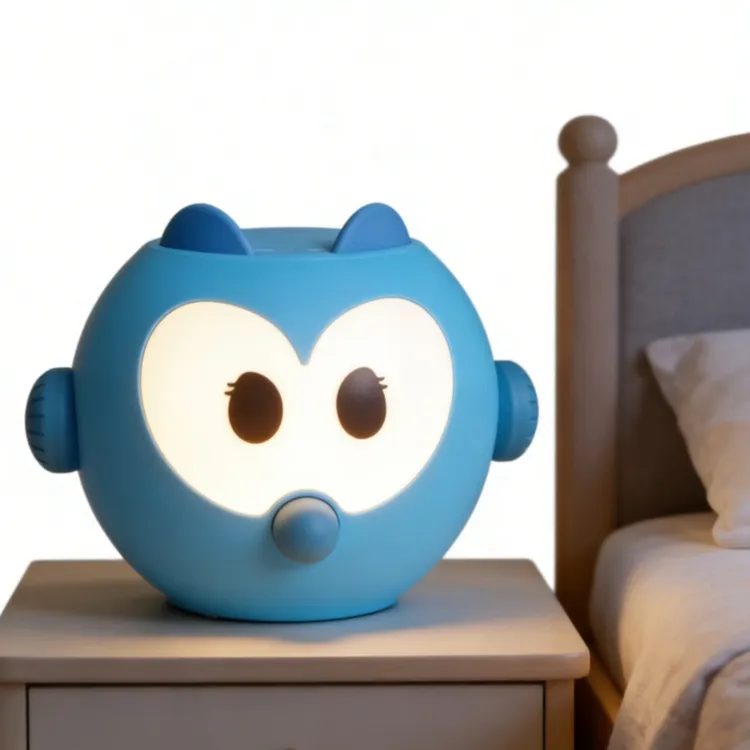

Additional Features: LED night-light mode; one-touch recording for personalized voice messages; multi-language support (English, Chinese, Spanish, and more).
Safety & Compliance: CE, FCC, ROHS, UKCA, Sedex, EN71, CPSIA certified; zero batteries in toys; child-safe controls.
These parameters ensure consistent performance even after thousands of placement cycles, with read accuracy exceeding 99.9% under normal use.
Why the XDT RFID Story Machine Outperforms Alternatives
Technical Superiority Over NFC/Integrated Systems:
Cost & Scalability: LF 125 kHz tags + separate magnets reduce per-unit production costs by up to 30–40% versus full NFC chips, making it perfect for wholesale figurine customization and large-volume doll sales.
Reliability Edge: Independent components eliminate induction failures from poor contact or magnet interference - a common pain point in single-chip designs.
Development Flexibility: Easy content updates via TF card swaps; supports custom audio libraries (fairy tales, science facts, brand stories) without firmware changes.
Power Efficiency: Passive tags and optimized reader circuitry minimize battery drain, achieving longer playtime than many Wi-Fi-dependent competitors.
Parents and educators consistently choose the XDT RFID story machine for its ability to promote independent play, fine motor skills, and decision-making while eliminating screen time entirely.
Technical Specifications Summary
Experience the Future of Screen-Free Storytelling with the XDT RFID Story Machine
The XDT RFID story machine combines cutting-edge passive RFID engineering with thoughtful, child-centric design to create a truly independent learning companion. From bedtime routines to preschool circle time, it empowers children to explore stories on their own terms while giving parents complete peace of mind.
